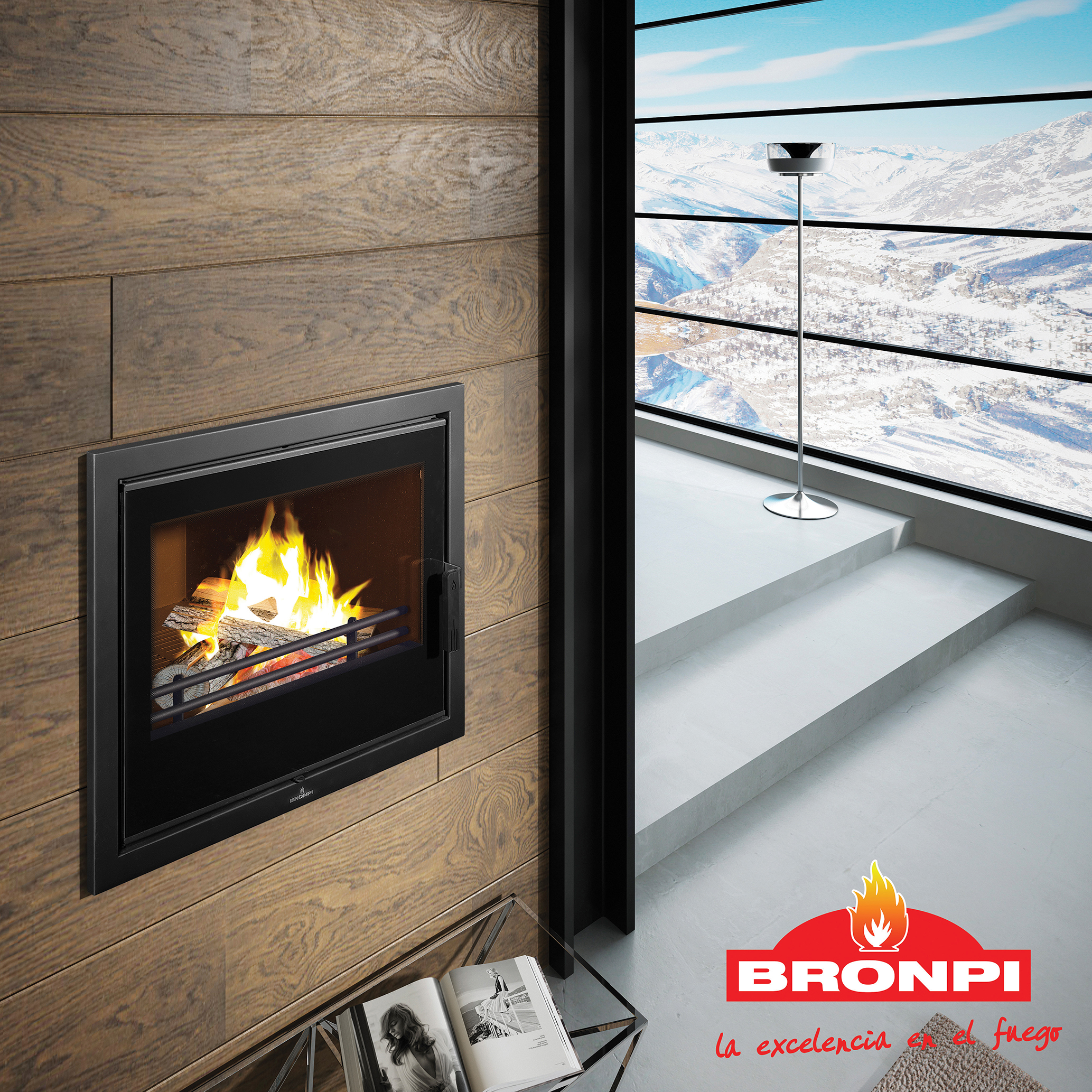

Hydrobronpi 80E Vision

HYDROBRONPI-80E VISION
Power (kW)27
Power transferred to water (kW)22.5
Efficiency (%)76
Consumption (kg/h)7.8
Heating capacity (m3)675
Hopper capacity (Kg)90
Metalic inside
Useful oven measures727 X 359 X 503
Working pressure (bar)1.5
Maximum logs size (cm)72
Manufactured in cast-iron
Weight (kg)222
Smoke exit tube diameter (mm)200
Clean glass system
Compatible accesories not includedF-503; KIT-1; KIT-2; VAL-01; VAL-03
Underfloor heating (m2)225
Nº radiator elements161
Features:
  • Heating power: 27kw
  • Power transferred to water (kW): 22.5kw
  • Efficiency (%): 76%
  • Consumption (kg/h): 7.8kg/h
  • Heating capacity (m3): 675m3
  • Tank capacity (l): 90l
  • Metallic interior
  • Manufactured in cast-iron and sheet
  • Weight (kg): 222kg
  • Smoke exit tube diameter (mm): 200mm
  • Clean glass system
  • Useful oven measures: 727 X 359 X 503mm
  • Working pressure (bar): 1.5bar
  • Maximum logs size (cm): 72cm
  • Underfloor heating (m2): 225
  • Nº radiator elements: 161
  • Compatible accesories not included: F-503; KIT-1; KIT-2; VAL-1; VAL-3
