Metro 100XT Tunnel Eco Wave
Metro 100XT Tunnel Eco Wave

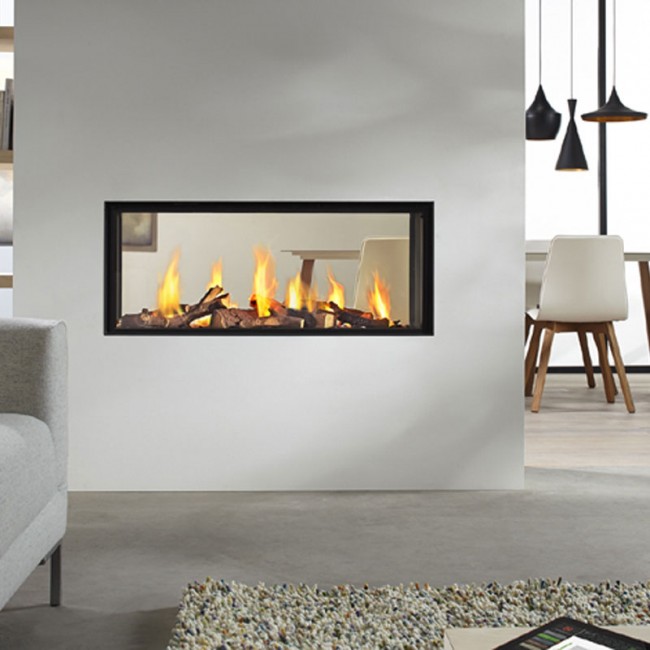

A fire with added dimension, the Metro 100XT Tunnel Eco Wave is a see-through balanced flue gas fire for a room divider or adjoining rooms, making an impressive 3D spectacle. The burner spreads the fire in across the entire width and depth of the fire bed, while the extra tall glass window provides a much higher flame picture than that of ordinary gas fires.
Output range:
Natural gas G20 4.3 – 9.6 kW
Natural gas G25.3 3.3 – 9.0 kW
Propane G31 4.1 – 9.1 kW
Efficiency
83.3%
Natural gas G25.3 3.3 – 9.0 kW
Propane G31 4.1 – 9.1 kW
Efficiency
83.3%
Specifications
Brand | DRU |
---|---|
Series | Metro |
Category | Gas fires |
Energy efficiency class | B |
Model | Built-in |
Fire view | Tunnel |
Shape | Horizontal |
Fuel | Natural gas, Propane |
Combustion system | Closed combustion |
Glass window | Standard glass, Anti-reflective (Clear View) glass |
Door type | Easy release door system |
Control | Remote control RCH DRU, Smartphone/tablet (wifi) |
---|---|
Control hatch | Included |
Burner | Vario Burner |
Eco Wave | YES |
Thermostat | YES |
Colours | Black |
Material | Steel |
Interior | Black |
Fire bed | Brown logs, White stones, Anthracite glass |
Output net – G31 min. | 4.1 |
Output net – G31 max. | 9.1 |
Efficiency (%) | 83.3 |
Consumption min (L/h) | 560 |
Consumption max (L/h) | 1287 |
Built-in depth (mm) | 419 |
Fire view width (mm) | 1000 |
Fire view height (mm) | 410 |
Weight (kg) | 145 |
Vertical pipe length min (m) | 0 |
Direct flue | YES |
Flue top (mm) | 200/130 |
Convection connection | NO |
PowerVent possible | YES |
PowerVent length minimum | 7 |
PowerVent length maximum | 37 |
230V necessary | YES |
Dimensions | Click for PDF-file |
