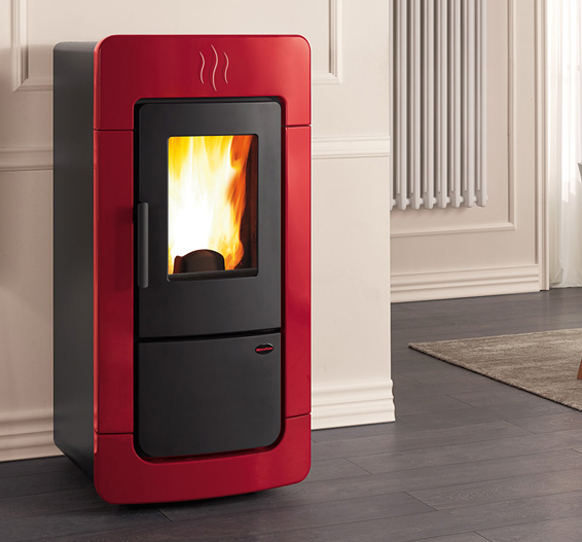

Diadema ACS Idro
Model: Diadema ACS Idro
Stove type: Boiler pellet stove
Colours available: Red, White
Features: • Majolica covering • Ash drawer • Self-cleaning brazier • Heat exchanger with manual cleaning system • Over heating Thermostat • Foreseen for external thermostat (TA) • Weekly chronothermostat • Remote Control • Circulation • Expansion tank • Safety valve 3 bar • Instant production of domestic hot water • Expansion board for integrated system management
6,7-28,4 kW: rated thermal input
25,2 kW-H2O: power given back to water
815 m3: heatable area
Efficiency >90 %
Dimensions (L-H-D) 619x1304x689 mm
Net weight 259 kg
Hourly consumption 1,5 – 6,5 kg/h
Smoke outlet diameter 120 mm
Feed box total capacity ~ 48 kg
Energy Label A+
